Logicube

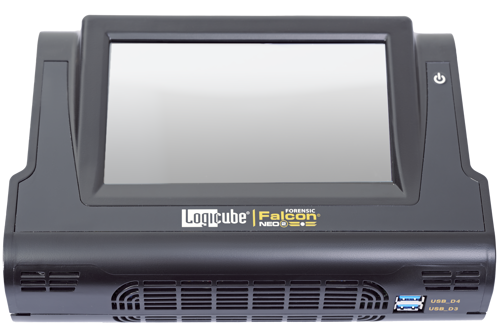

Falcon-NEO2


The future-proof forensic imaging platform

The Logicube Falcon-NEO2 is built for forensic teams that demand speed, scalability, and reliability. Image, clone, wipe, and hash up to five tasks simultaneously, with built-in write-blocking and full chain-of-custody support.

  • Up to 115 GB/min E01 imaging (SAS-3 SSD)
  • 100+ GB/min PCIe cloning
  • Up to 10 source ports & 11 destination ports
  • 5 concurrent tasks

Why the Falcon-NEO2?

Unmatched Speed
E01 imaging up to 115 GB/min and PCIe cloning above 100 GB/min. With Concurrent Image+Verify, total turnaround time can be cut in half.

All-in-One Platform
Mobile Device Capture (iOS up to 26.x, Android 4.0+), Cloud Storage Acquisition (OneDrive, Dropbox, Google Drive), and network traffic capture (.pcapng) are all included as standard.

Maximum Connectivity
Native SAS-3, SATA, PCIe, and USB 3.2 Gen 2. Expandable with Thunderbolt 3/USB-C, FireWire, and SCSI modules for legacy media. Two 10 GbE ports for network imaging (CIFS/iSCSI).

Encryption & Triage
Detect encryption at the disk and partition level. Decrypt BitLocker, OPAL, VeraCrypt, and TrueCrypt. Triage with VICS, CSV, and X-Ways hash databases and visual thumbnail preview.

Image Without Disassembly
Image a PC or laptop over the network using a forensic boot USB, without booting the OS. Mac support via Target Disk Mode or Logicube's USB boot method.


Core Features

Imaging & Verification

  • Physical and logical imaging to dd, E01, EX01, DMG, AFF4, and native copy
  • Targeted/Logical Imaging with filters and keyword search. Output in L01, LX01, ZIP, or directory tree
  • Parallel Imaging: one source to multiple destinations in different formats
  • APFS support for logical imaging and file browsing
  • Hashing: MD5, SHA1, SHA256, and dual hash at high speed


Network & Cloud

  • Two 10 GbE ports (CIFS/iSCSI) for imaging to and from network locations
  • Capture of network traffic, internet activity, and VoIP (.pcapng)
  • Cloud acquisition: OneDrive, Dropbox, Google Drive
  • MFA support via YubiKey 5 FIPS for secure network access


Mobile & Encryption

  • Mobile Device Capture: SMS, MMS, photos, videos (iOS up to 26.x, Android 4.0+)
  • Encryption detection at the disk and partition level
  • Decryption of BitLocker, OPAL, VeraCrypt, TrueCrypt


Wiping & Security

  • Secure Erase, DoD wipe, and custom settings (NIST 800-88)
  • Wipe speeds up to 30 GB/min (SATA) and 115 GB/min (PCIe)
  • Evidence protection with XTS-AES 256 full disk encryption


Triage & Preview

  • Write-blocked file browser with thumbnail view
  • VICS-compliant triage with import of VICS, CSV, and X-Ways hash databases
  • Preview via SMB or as an iSCSI target on a PC/laptop


Reporting & Workflow

  • Audit trail with digital signature per task (PDF, HTML, XML)
  • Remote operation, task macros, resume function, capture path selection
  • Password-protected user profiles, configuration storage
  • Color touchscreen, HDMI output


All other features:
Partition imaging, image restore, reverse read, network "Push" function, HPA/DCO capture, imaging from CD/DVD/Blu-Ray, drive spanning, blank disk check, drive trim, S.M.A.R.T. data, internal removable storage drive for classified locations, formatting of destination drives (NTFS, exFAT, HFS+, EXT4, EXT3, EXT2, FAT32).


Included as Standard

The Falcon-NEO2 is delivered in a soft case, including:

  • Power supply & power cable
  • 2× 4-in-1 SAS/SATA data & power cable
  • 2× CAT7 network cable
  • eSATA cable
  • mSATA-to-SATA adapter
  • Micro SATA-to-SATA adapter
  • USB 3.0 Type-A to USB-C cable


Expandable for Every Situation
The Falcon-NEO2 is a scalable platform. Expand with optional modules and adapters for legacy and specialty storage media:

I/O Modules

  • Thunderbolt 3 / USB-C I/O card
  • FireWire module
  • SCSI module (68-pin; adapters for 50-pin and 80-pin)


Drive Adapters

  • PCIe adapter kit (M.2/mini-PCIe)
  • U.2 NVMe-to-PCIe
  • M.2 NVMe-to-USB
  • IDE-to-SATA (2.5"/3.5")
  • ZIF/1.8" IDE-to-SATA
  • USB SATA Kit


Accessories

  • USB-to-SATA adapter
  • 4-port USB 3.0 hub
  • USB Flash Reader (CF/SD)
  • Hard Case
  • Extended warranty (1 or 2 years)

Click here for more information about the individual functionalities of the Falcon NEO 2.

Want to learn more about Logicube's Falcon NEO 2? Please contact us.
