Logicube

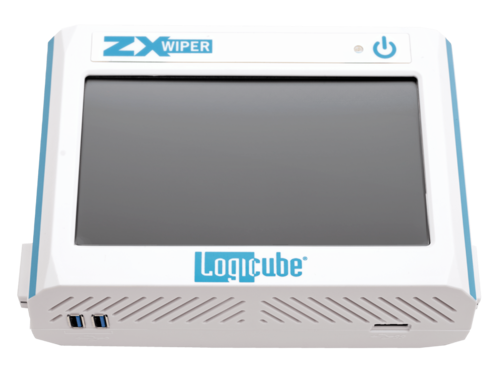

ZX-Wiper



The Logicube ZX-Wiper is built for organizations that demand secure, fast, and certifiable data wiping. Wipe up to 12 drives simultaneously via SAS, SATA, USB, PCIe, FireWire, and NVMe, with full support for NIST 800-88, DoD 5220.22-M, and ITSP.40.006 v2 specifications.

  • Up to 60+ GB/min NVMe sanitization
  • Up to 31 GB/min for other drives
  • 12 target ports
  • 5 concurrent tasks

Why the ZX-Wiper?

Unmatched Wipe Speed
NVMe sanitization at speeds exceeding 60 GB/min via USB-to-NVMe adapter and up to 31 GB/min for SAS, SATA, USB, PCIe, and FireWire drives. Process large volumes of drives in record time.

Wide Range of Wipe Standards
Support for ITSP.40.006 v2, DoD 5220.22-M (7-pass), Secure Erase (single pass), and a configurable Custom Pass Wipe. With the Task Macro feature, even a Gutmann 35-pass wipe is possible. Comply with NIST 800-88 guidelines with selectable partial or full verification.

Maximum Connectivity
Native SAS, SATA, USB 3.2 Gen 2, PCIe, and FireWire. Wipe up to 12 drives simultaneously: 4 SAS, 4 USB3, 2 PCIe, and 2 FireWire. Wipe up to 6 NVMe drives via the PCIe and USB ports with optional adapters. Expandable with IDE and SCSI support.

Network & Remote Operation
Two Gigabit Ethernet ports for network connectivity. Operate the ZX-Wiper remotely via a web browser and manage multiple ZX-Wiper units on the same network from a single location.

Ease of Use & Management
Intuitive interface on a 7" color touchscreen. Advanced management features for network settings, user profiles, and configuration storage. HDMI output for connection to a projector or monitor.


Core Features

Wipe Methods & Verification

  • Secure Erase: single-pass secure erase
  • DoD 5220.22-M: 7-pass DoD wipe
  • ITSP.40.006 v2: powerful next-generation sanitization specification
  • Custom Pass Wipe: set a custom number of wipe passes
  • Gutmann 35-pass wipe via the Task Macro feature
  • Partial and full verification for Custom, DoD, and ITSP.40.006 v2 wipe patterns (NIST 800-88)


Connectivity & NVMe

  • 4 SAS/SATA ports, 4 USB 3.2 Gen 2 ports, 2 PCIe ports, 2 FireWire ports
  • Up to 6 NVMe drives via 2 PCIe ports (with optional PCIe-to-NVMe adapters) and 4 USB ports (with optional USB-to-NVMe adapters)
  • IDE support with optional adapter
  • SCSI support with optional module


HPA/DCO & Security

  • HPA/DCO support: wipe and sanitize hidden areas on a hard drive
  • Full sanitization in compliance with NIST 800-88, DoD 5220.22-M, and ITSP.40.006 v2


Network & Remote

  • 2 Gigabit Ethernet ports for network connectivity
  • Remote operation: control all operations remotely via a web browser
  • Manage multiple ZX-Wiper units on the same network


Reporting & Workflow

  • Audit trail/log report with detailed information per operation; exportable to HTML, XML, or PDF
  • Task Macro: set up specific tasks to be executed sequentially; automate and streamline your processes
  • Multi-session: run up to 5 tasks simultaneously
  • User profiles and configuration storage
  • 7" color touchscreen, HDMI output


Included as Standard

The ZX-Wiper comes with:

  • Built-in power supply & power cable (US & EU)
  • 4× SAS/SATA data & power cable
  • 1× CAT6 network cable
  • 4× eSATA 6-pin SATA power cable (for eSATA drives)
  • 2× 9-pin male-to-male FireWire 800/800 cable

Expandable for Every Situation
The ZX-Wiper is a scalable platform. Expand with optional modules and adapters for legacy and specialized storage media:

Drive Adapters

  • PCIe/NVMe/AHCI/M.2/mSATA adapter kit (complete multi-interface kit)
  • U.2 NVMe-to-PCIe adapter
  • M.2-to-PCIe adapter (NVMe & AHCI)
  • USB 3.0-to-SATA adapter (with cable & power supply)
  • 18" extended SAS/SATA cable set
  • mSATA-to-SATA adapter
  • M.2 SATA-type-to-SATA adapter
  • Mini-PCIe-to-PCIe adapter
  • U.2 NVMe extension cable (3 cm)
  • 1.8" microSATA-to-SATA adapter
  • 2.5"/3.5" IDE-to-SATA adapter
  • 1.8" IDE-to-SATA adapter
  • 1.8" ZIF-to-1.8" IDE adapter (including cables)
  • eSATA cable (18")
  • USB Flash Media Reader (CF/SD)
  • 10 Gbps M.2 NVMe-to-USB adapter (including USB-C cables)
  • 4-port USB 3.0 hub (with power supply)


Modules

  • SCSI module (for SCSI drive support)
  • 50-pin-to-68-pin SCSI adapter
  • 80-pin-to-68-pin SCSI adapter

Accessories

  • Soft-sided carrying case
  • Hard-sided carrying case
  • Extended warranty (1 or 2 years)

Want to learn more about Logicube's ZX-Wiper? Please contact us.
